5 years warranty 50w 80w 100w 150w 240w led street light, IP66 waterproof 3000k 6000k city led road lighting
Model Number : EK-LD2301
Toote nimi: Street Light korpus
Recommend the Watts: : 20w 60w 80w 100w 150w 200w 240w
Veekindluse indeks: IP66 IP67
Maavärinakindel indeks: IK08 IK09
Töötemperatuur (℃): -20-60
Pinnavärv: tumehall, helehall, must, kohandatud jne
Contain Accessories : Complete finished street lights
Toote omadused
- Alumiiniumkorpus on valmistatud survevalatud ADC12 alumiiniumist, pind on töödeldud pihustusvärviga, et vältida korrosiooni ja värvi püsivust.
- Suure pindalaga jahutusradiaatori ribi disain võimaldab kiiret teooriat külma ja kuuma õhu vahelise konvektsiooni kasuks, et säilitada lampide hea soojuse hajumine ja suurendada valgust kogu eluea jooksul.
- Toiteallika kast, et lamp oleks terviklik ja ühtne.
- Ventilatsioonikonstruktsioon tolmu ennetamiseks ja seisva vee vältimiseks, et saavutada kerge pikaealisus.

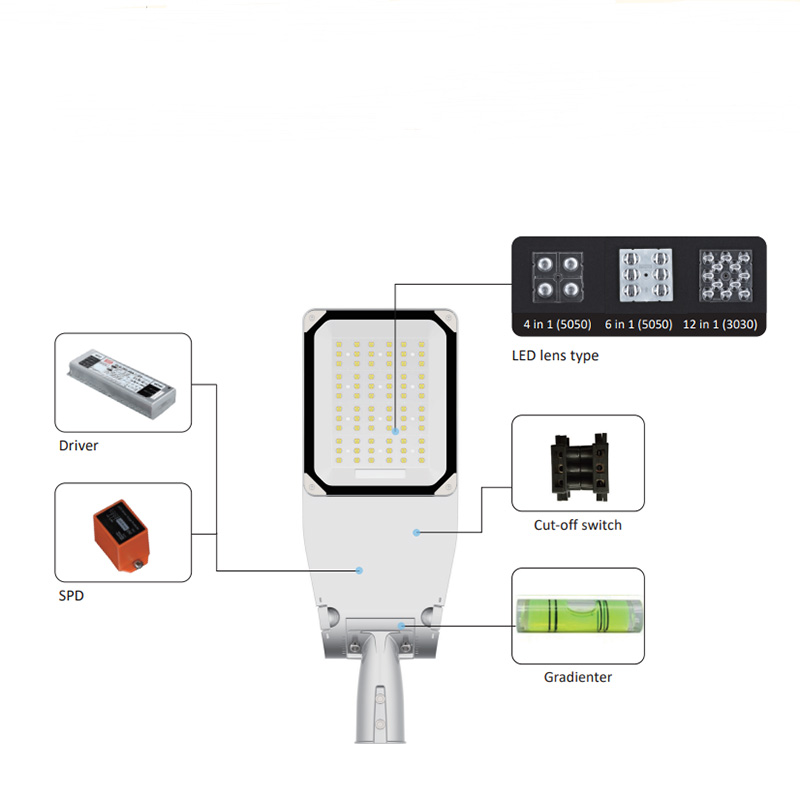

Product Details

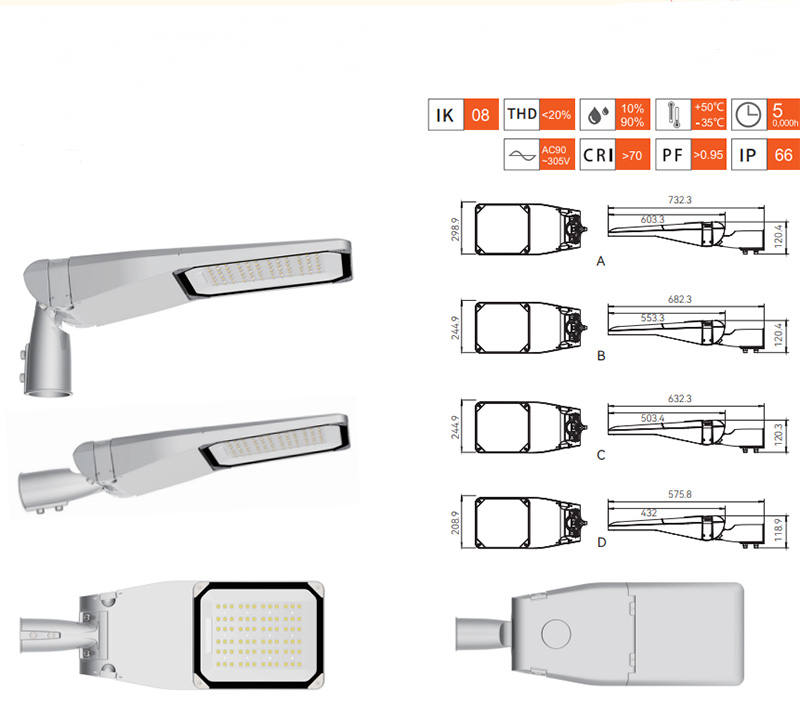

Product Size Chart
Spetsifikatsioon ja mõõtmed
| Model | EK-LD2301A | EK-LD2301B | EK-LD2301C | EK-LD2301D |
| Wattage | 150-240W | 100W-150W | 60W-100W | 20W-60W |
| Average Lumen | around 120 LM/W | around 120 LM/W | around 120 LM/W | around 120 LM/W |
| Chip Brand | LUMILEDS/CREE/SAN'AN | LUMILEDS/CREE/SAN'AN | LUMILEDS/CREE/SAN'AN | LUMILEDS/CREE/SAN'AN |
| Driver Brand | MW/PHILIPS/Inventronics | MW/PHILIPS/Inventronics | MW/PHILIPS/Inventronics | MW/PHILIPS/Inventronics |
| Power Factor | >0.95 | >0.95 | >0.95 | >0.95 |
| Voltage Range | 90V-305V | 90V-305V | 90V-305V | 90V-305V |
| Surge Protection(SPD) | 10KV/20KV | 10KV/20KV | 10KV/20KV | 10KV/20KV |
| Insulation Class | Class I / II | Class I / II | Class I / II | Class I / II |
| CCT. | 3000-6500K | 3000-6500K | 3000-6500K | 3000-6500K |
| CRI. | >70 | >70 | >70 | >70 |
| Working Temperature | (-35℃ to 50℃) | (-35℃ to 50℃) | (-35℃ to 50℃) | (-35℃ to 50℃) |
| IP klass | IP66 | IP66 | IP66 | IP66 |
| IK Class | ≥IK08 | ≥IK08 | ≥IK08 | ≥IK08 |
| Lifetime (Hours) | >50000 hours | >50000 hours | >50000 hours | >50000 hours |
| Materjal | Diecasting aluminium | Diecasting aluminium | Diecasting aluminium | Diecasting aluminium |
| Photocell base | With | With | With | With |
| Installation Spigot | 60/50mm | 60/50mm | 60/50mm | 60/50mm |
New Arrival 180W Street Led Manufacturer Outdoor Lighting Waterproof Aluminum LED Street Light
Shenzhen EKI Lighting Industrial Co., Ltd. on alumiiniumist survevalu LED-valguskorpuste tootja, millel on meie enda väljatöötatud disain ja tehnoloogia.
With Our High-Technology Machine such as, 250T 800T 1000T 1250T Die Casting Machine, CNC Machine, Well Managed production line and surface treatment facility. We becoming specialized in LED Streetlight Housing, LED Floodlight Housing, LED Highbay Heatsink, LED Empty Casting aluminum light housing.
