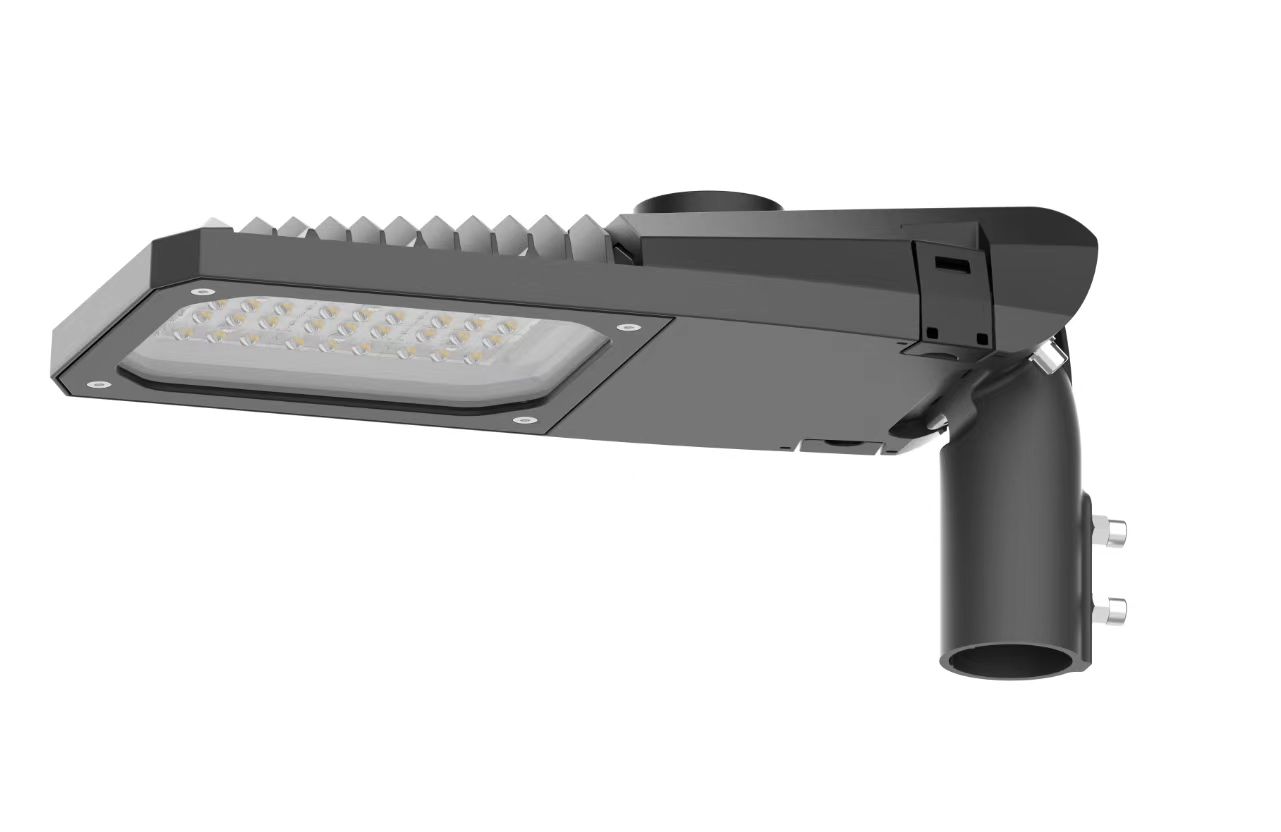

Horizontal and Vertical available adjustable angle-15°to+15° led street lighting.
The LED Street light housing manufacture from high pressure die-casting aluminum casing
| Mudeli kood | Housing Size mm | Match Power | Lamp Post （mm) | Kaal (kg) | Aksessuaarid |
| EK-LD13A | 492*183*97 | 30-50W | 60 | 2.4kg | Aluminum body tempered glass, Waterproof Rubber Ring，304 s/s screws, |
| EK-LD13B | 541*200*113 | 60-80W | 60 | 2.8kg | |
| EK-LD13C | 602*243*121 | 90-120W | 60 | 3.5kg | |
| EK-LD13D | 652*263*121 | 120-150W | 60 | 4.0kg | |
| EK-LD13E | 722*314*121 | 150-200W | 60 | 5.5kg | |
| EK-LD13F | 823*314*121 | 240-300W | 60 | 6.1kg | |
| Legend: Std = IP66 IK08 | |||||
| Housing Material ：Die-cast Aluminum + Armored Glass | |||||
| Töötemperatuur -35℃~50℃ 20%~90% HR | |||||
Toote omadused
- Alumiiniumkorpus on valmistatud survevalatud ADC12 alumiiniumist, pind on töödeldud pihustusvärviga, et vältida korrosiooni ja värvi püsivust.
- Large area heatsinks fin design for fast theory in favor of the connection between cold and hot air, to keeping the good heat dissipation of lamps and increase the light whole life-time.
- Toiteallika kast, et lamp oleks terviklik ja ühtne.
- Ventilatsioonikonstruktsioon tolmu ennetamiseks ja seisva vee vältimiseks, et saavutada kerge pikaealisus.
high-performance street lighting available in three sizes.
The LED Street lighting is manufactured from high pressure die-casting aluminum.
Led street light housing, Aluminum body street light
Shenzhen EKI Lighting Industrial Co., Ltd. on alumiiniumist survevalu LED-valguskorpuste tootja, millel on meie enda väljatöötatud disain ja tehnoloogia.
With Our High-Technology Machine such as, 250T 800T 1000T 1250T Die Casting Machine, CNC Machine, Well Managed production line and surface treatment facility. We becoming specialized in LED Streetlight Housing, LED Floodlight Housing, LED High bay Heatsink, LED Downlight Empty Casting and so on.
LED tänavavalgusti korpuse omadused:
- Väga vastupidav
- Suur tugevus
- Saadaval on uusimad kujundused
